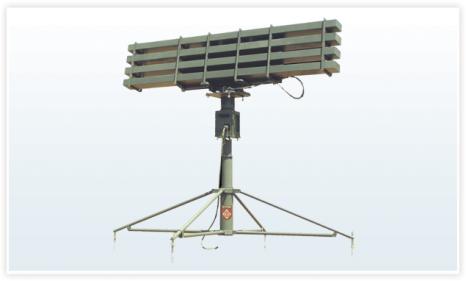

State-of-the-art 3D Radar System for Surveillance and Target Data Acquisition, designed to integrate the Air Traffic Control and Low Altitude Anti-Aircraft Defence Systems.

This radar monitors, simultaneously, 60, or even more, aerial targets, classifying them friend or foe, fixed or rotary wing, and identifying the helicopter signatures.

Features: 60 km detection range; 1° elevation accuracy; 2° azimuth accuracy; range accuracy: 50 m; primary radar in L band, and secondary in the modes 1, 2, 3/A, C, 4 and 5, for a range of up to 80 km.

The most advanced Mulitpolarimetric Interferometric Synthetic Aperture Radar, operating in X and P bands, for day and night airborne mapping, survey of lands covered by forest, cloud or sandstorm and production of accurate maps of forest treetop and ground plans - 1:5.000.

Applications: digital terrain and surface models, ortho images, topographic maps, biomass computing, identification of minerals, project and surveillance of pipelines and irrigation plants and other applications.

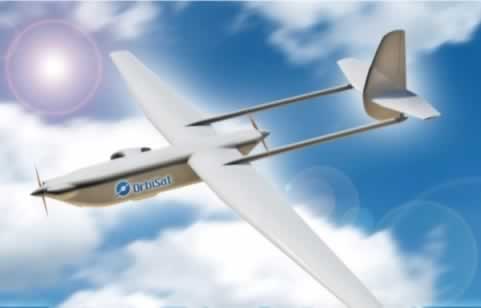

Totally autonomous UAV with a wing span of 6 m, push-pull twin motors, high reliability, low cost flight regime, endurance of 30 hours and cruise speed of 200 km/h.

SARVANT carries a Synthetic Aperture Radar, operating in X and P bands, integrated to two optical cameras and a high precision strap down Inertial Navigation System (INS) with a Differential Global Positioning System (DGPS). Optical cameras can also be installed.

Features: single pass interferometry and 0.5 m resolution in X band; high accurate, dual pass interferometry and 2 m resolution, in P band.

Applications: high precision mapping, offshore platform support, country border control, civil defence and tactical police operations, transmission lines inspection, survey of biomass and crop control.

The SABER – M200 is a medium range, state-of-the-art Surveillance Radar System for all weather and environmental conditions.

It will employ 4 fixed antenna panels, operating in S band, for the detection and tracking of air-breathing targets, missiles, helicopters, UAV’s and other low-flying threats, within an angle of 70º from horizon and an instrumented range of about 200km.

The secondary radar will operate in modes 1, 2, 3A, C, S, 4 and 5, at a range of 200 NM.

The SABER – M200 is modular, characterized by a flexible time–energy management and a phased array antenna that produces a number of sub radar-systems working in parallel and independently.

Applications: surveillance radar, tracking radar, ground radar, weather radar and Inverse Synthetic Aperture radar.

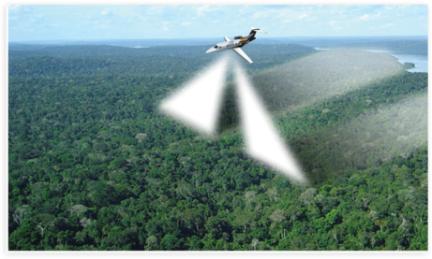

The ORBISAR-EMS system works with a P-Band Synthetic Aperture Radar, with a 45 km wide-swath at each side of the plane, monitoring the environment and forest devastation of large land areas and producing high-quality images for the recognition of objects and manoeuvres under covered areas or shelters.

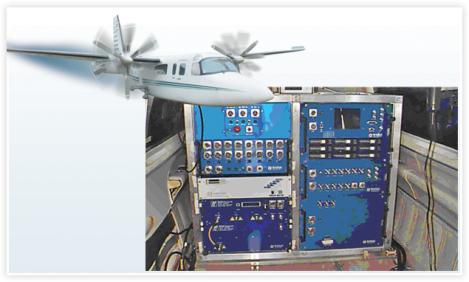

Airborne X and P bands Synthetic Aperture Radar System with real time processing capability that generates X-HH, P-HH, P-HV and P-VV images in real time.

Applications: search and rescue and country boundary monitoring.
